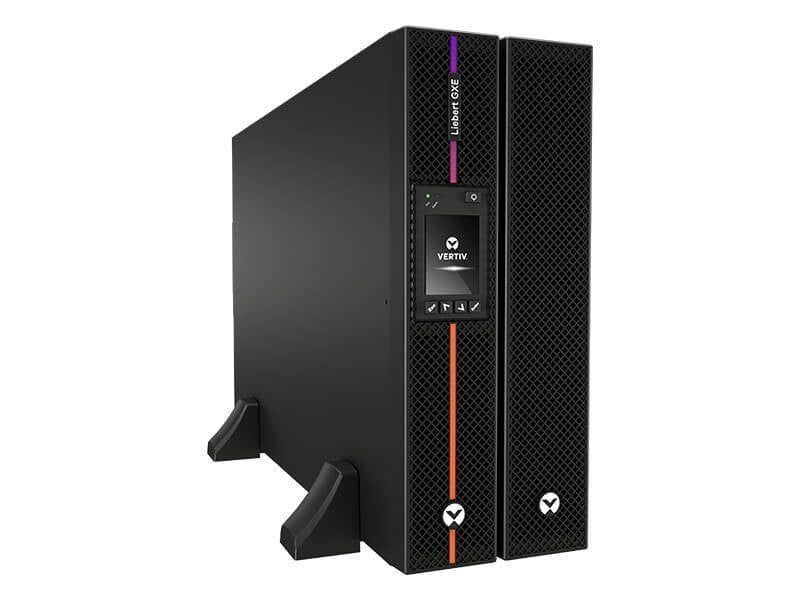

Liebert GXE 6000VA: a 4U online UPS
GXE3-6000IRT4UXL is a Vertiv online double-conversion UPS with built-in batteries. Vertiv describes the series as single-phase. Rating: 6000VA / 6000W, pure sine wave output. Efficiency up to 94% in online mode and up to 98% in ECO mode.
Battery and runtime
VRLA batteries: 5 minutes at full load and 14 at half load per the Vertiv technical specifications table, charging to 90% in 3 hours. For longer runtime there is the GXE3-EBC192VRT2U external module.
Input and output

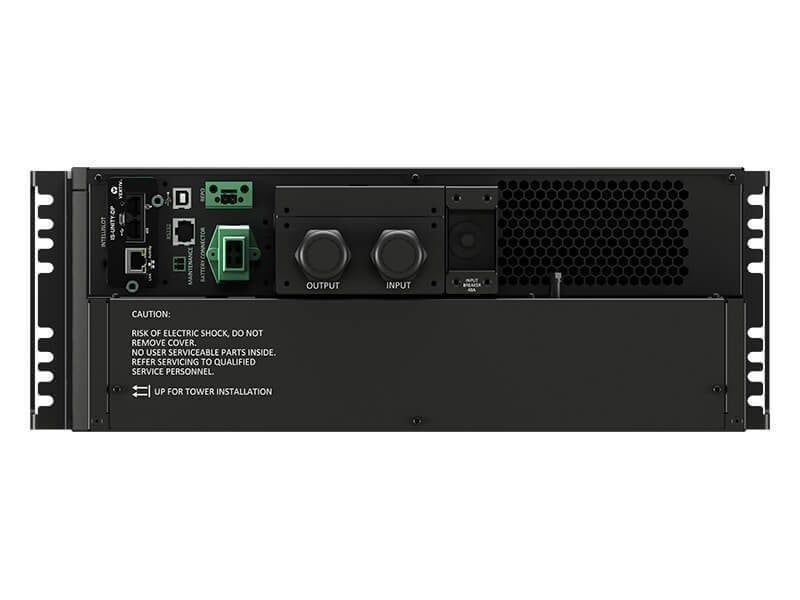

Input and output are wired to L-N-G terminals, there are no outlets on the chassis. Output voltage is 220, 230 or 240V. At full load the UPS handles input from 176 to 288V without going to battery, and from 100V with power derating.
Mounting and management

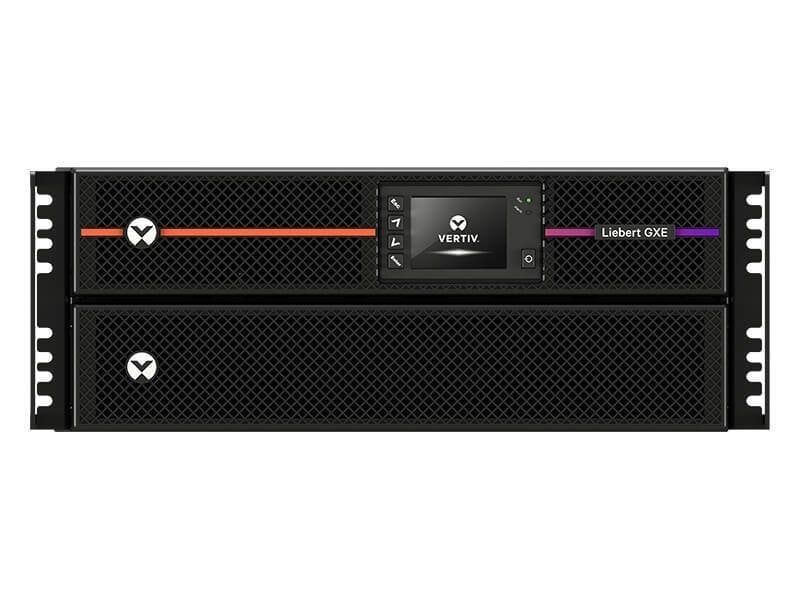

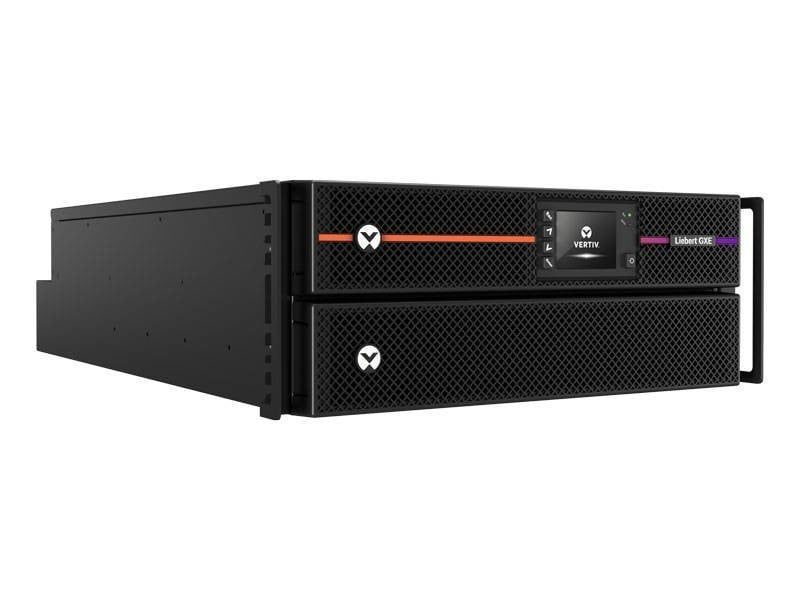

A 4U rack or tower chassis, rack mounting kit in the box. Dimensions 430 × 750 × 173 mm, weight 70 kg, operating from 0 to 40 °C. There is a USB port, a slot for an optional Vertiv IntelliSlot network card and an EPO input for emergency shutdown.
GXE or GXT5
Both series are online. The GXT5-6000IRT5UXLN at the same rating has outlets on the output besides the terminals, with a network card included and a three-year warranty. GXE is simpler: terminals only, the card is optional, two-year warranty.
Warranty
2 years on electronics and batteries. We supply to order and will quote price and lead time on request.
How much power and runtime does your equipment need?
We will size the load from the rated consumption of your servers and network gear and pick a UPS and battery modules for the runtime you need.
We supply Vertiv to order: UPS units, PDUs and VR Rack cabinets for a single rack or a server room.
Message us on Telegram or leave a request.
